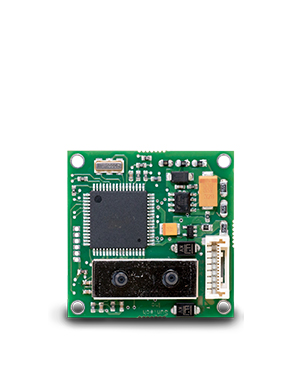

Adv A+ Mini模塊的采用扁平結構設計能在各種安裝空間靈活運用，與Adv A+系列相同的功耗，但在固定的空間內可自由定義，是一款全能型的獨立血壓方案。 1）高性能低功耗適合于絕大部分移動醫療設備 2）緊湊、扁平結構可靈活用于任何空間 3）RMT和TMT技術可選 4）符合醫療設備第三版要求和Rohs要求 5）RS232和TTL通訊可選 6）集成Adv A+功能與Adv Mini的體積
技術規格
Physical Dimensions
| SPECIFICATIONS | VALUES |
|---|---|
| Width | 1.6 in [40.6 mm] |
| Length | 1.6 in [40.6 mm] |
| Height | 0.71 in [18.00 mm] |
| Weight | 0.25 lbs [113 g] |
Measurement
| SPECIFICATIONS | VALUES |
|---|---|
| Technique | Oscillometric |
| NIBP Accuracy | Meets ANSI/AAMI SP10, EN 1060-4, ISO 81060-2 |
| Patient Applications | Adult, Pediatric, Neonatal |
| Systolic Range |
|
| Diastolic Range |
|
| Pulse Rate Range | 30-220 BPM (Beats per min) |
| Pulse Rate Accuracy | ±2% or ±3 BPM, whichever is greater |
| Transducer Accuracy | ± 3 mmHg over full range in operating conditions |
| Operating Modes | Manual |
| Operating Conditions | 0?C to 50?C, 15% to 95%, non-condensing humidity |
| Storage Conditions | -20?C to +65?C, up to 90% RH non-condensing |
Electrical
| SPECIFICATIONS | VALUES |
|---|---|
| Operating Voltage | 5.3-14.5 VDC (High), 1.8-9.0 VDC (Low) |
| Power Consumption |
Using 6 VDC Nominal (High) or 3.3 VDC Nominal (Low)
|
| Communication Protocols | Serial RS232 or TTL (3.3V or 5V) |
| Safety & Regulatory Standards | IEC 60601-1, IEC/EN60601-2-30, AAMI SP10, EN1060-1, EN1060-3, EN1060-4, IEC 80601-2-30, ISO 81060-2 |
Advantage Technologies
| SPECIFICATIONS | VALUES |
|---|---|
| SMT (Standard Motion Tolerance) | Yes |
| RMT-S (Standard R-wave Motion Tolerance) | Yes |
| TMT-S (Standard Transport Motion Tolerance) | Yes |
| VET (Veterinary Monitoring) | Yes |
| HDM (Hemodialysis Monitoring) | Yes |
Customer Support
| SPECIFICATIONS | VALUES |
|---|---|
| Standard Support | Yes |
| Custom Support | 10 hours* |
| Custom Design | Additional Charge |
Warranty
| SPECIFICATIONS | VALUES |
|---|---|
| Time | 1 year |
| Cycles | 30000 |
