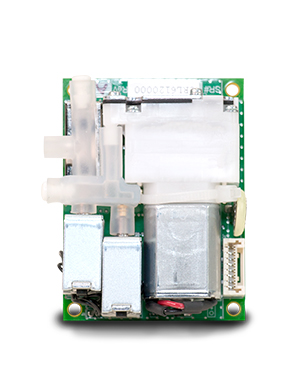

功能與Adv A+相當，但體積更小，功耗更低，所有硬件集成在一起，是急救醫療服務和手持醫療設備的理想選擇。 1) 體積小 2) RMT和TMT技術可選 3) 符合醫療設備第三版和Rohs要求 4) RS232和TTL通訊協議可選 5) 易安裝 6) Adv A+模塊的緊湊型
技術規格
Physical Dimensions
| SPECIFICATIONS | VALUES |
|---|---|
| Width | 1.9 in [48.5 mm] |
| Length | 2.56 in [65.0 mm] |
| Height | 0.89 in [22.5 mm] |
| Weight | 0.1875 lbs [85 g] |
Measurement
| SPECIFICATIONS | VALUES |
|---|---|
| Technique | Oscillometric |
| NIBP Accuracy | Meets ANSI/AAMI SP10, EN 1060-4, ISO 81060-2 |
| Patient Applications | Adult, Pediatric, Neonatal |
| Systolic Range |
|
| Diastolic Range |
|
| Pulse Rate Range | 30-220 BPM (Beats per min) |
| Pulse Rate Accuracy | ±2% or ±3 BPM, whichever is greater |
| Transducer Accuracy | ± 3 mmHg over full range in operating conditions |
| Operating Modes | Manual |
| Operating Conditions | 0?C to 50?C, 15% to 95%, non-condensing humidity |
| Storage Conditions | -20?C to +65?C, up to 90% RH non-condensing |
Electrical
| SPECIFICATIONS | VALUES |
|---|---|
| Operating Voltage | 5.3-14.5 VDC (High), 1.8-9.0 VDC (Low) |
| Power Consumption |
Using 6 VDC Nominal (High) or 3.3 VDC Nominal (Low)
|
| Communication Protocols | Serial RS232 or TTL (3.3V or 5V) |
| Safety & Regulatory Standards | IEC 60601-1, IEC/EN60601-2-30, AAMI SP10, EN1060-1, EN1060-3, EN1060-4, IEC 80601-2-30, ISO 81060-2 |
Advantage Technologies
| SPECIFICATIONS | VALUES |
|---|---|
| SMT (Standard Motion Tolerance) | Yes |
| RMT-S (Standard R-wave Motion Tolerance) | Yes |
| TMT-S (Standard Transport Motion Tolerance) | Yes |
| VET (Veterinary Monitoring) | Yes |
| HDM (Hemodialysis Monitoring) | Yes |
Customer Support
| SPECIFICATIONS | VALUES |
|---|---|
| Standard Support | Yes |
| Custom Support | 10 hours* |
| Custom Design | Additional Charge |
Warranty
| SPECIFICATIONS | VALUES |
|---|---|
| Time | 1 year |
| Cycles | 30000 |
